Stinnett Stops

Stinnett Stop

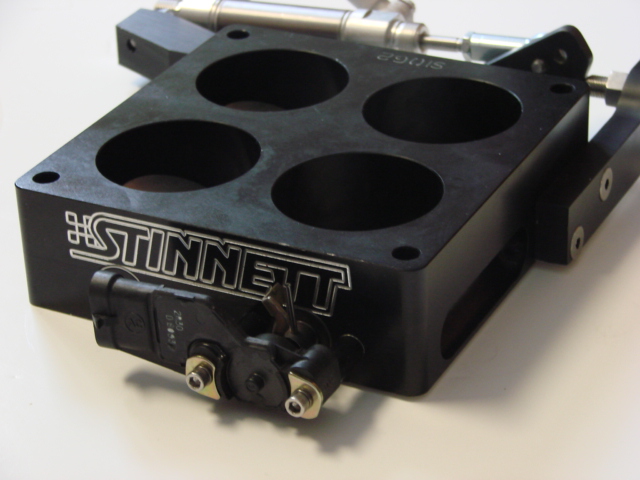

Four time NHRA S/C World Champ Gary Stinnett and #1 Stop Products have collaborated on a new Black Anodized Billet Aluminum Throttle Stop. Features include ball bearings on UltaOx® hardened shafts for improved wear and corrosion resistance. A Stinnett 4 hole to Open Transition Spacer is built in for a 2.75 total height. Standard throttle bores are 2.25 dia. with optional bores available. For more information on this world champion winning design, contact Stinnett Automotive at 620-343-1713 or #1 Stop Products at 319-277-5290 or email

Features Include:
  1. Black anodized aluminum body for good looks and easy clean-up
  2. Ball bearings for a long life and smooth operation
  3. UltraOx® hardened throttle shafts for improved wear and corrosion resistance
  4. A Stinnett 4 hole to open transition spacer is built into the base
  5. Extra machining to get rid of weight
  6. Standard throttle bore is 2.25
  7. Optional throttle bore sizes available

SDA-6PK Air Or Electric $875.00
3 Stage + 2 FC-C's Add $200
Machined options from 2.75 high to your spec. (min height 1.875) $50.00
Mounted TPS Switch $150.00
Larger Throttle Bores + 2.25 up to 2.500 $100.00

Stinnett Stop with spacer cut off and TPS Switch for S/G models with min height

For S/G & S/ST Cars, Stops can be made as short as 1 7⁄8" tall with a partial spacer left in the middle. We normally stock 2" tall models with partial spacer built in. Call for more info.

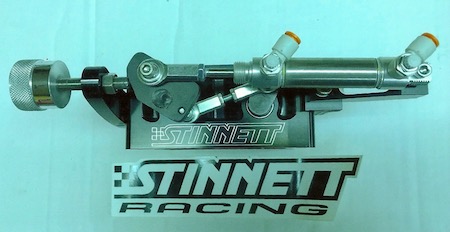

Early model Stinnett Stop shown with TPS kit installed

Gary Stinnett
2016 US National S/C Winner
4 Time NHRA S/C World Champ
2017 #3 In World in S/C

NHRA National Event Winners in 2016-2018
Gary Stinnett
Ray Miller Jr.
Ray Miller III
Mike Miller
Devin Isenhower S/G World Champ 2018
Steve Williams S/C World Champ 2018
Aaron Kinard
